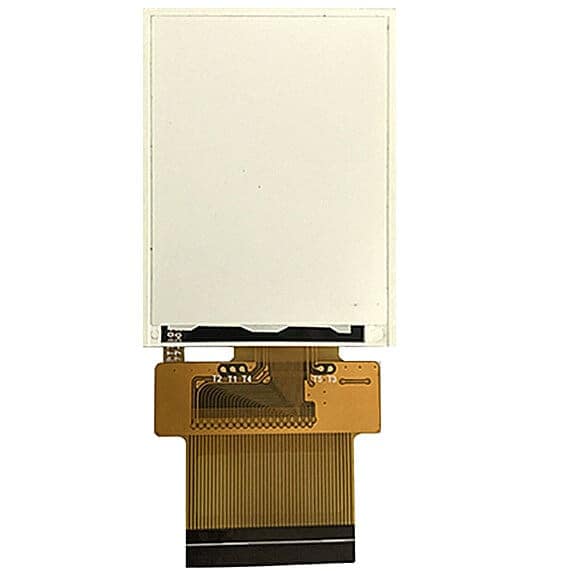

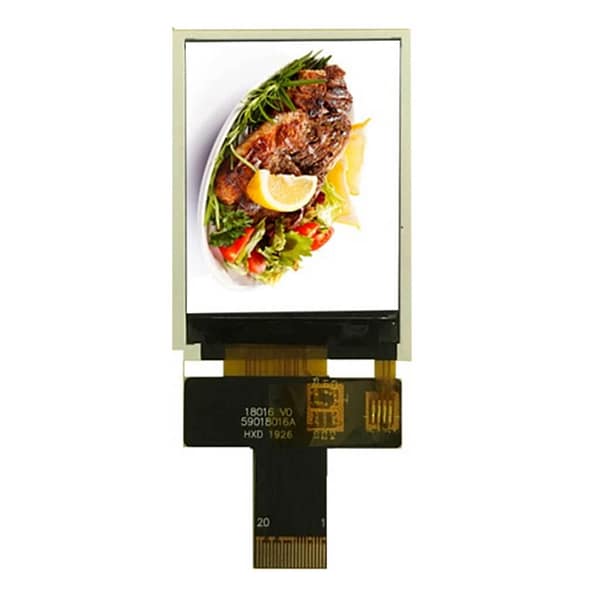

1.77″ IPS display, 240×320, 400 Nits, MCU/SPI/RGB Interface
- Medium Brightness / IPS
- Diagonal Dimension: 1.77 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU/SPI/RGB
- Luminance: 400 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
1.77″ IPS display, 240×320, 500 Nits, MIPI Interface
- Medium Brightness / IPS
- Diagonal Dimension: 1.77 Inch
- Resolution: 240 x 320 pixels
- Interface: MIPI
- Luminance: 500 cd/m2
- Viewing Direction: ALL
- Touch Panel: None

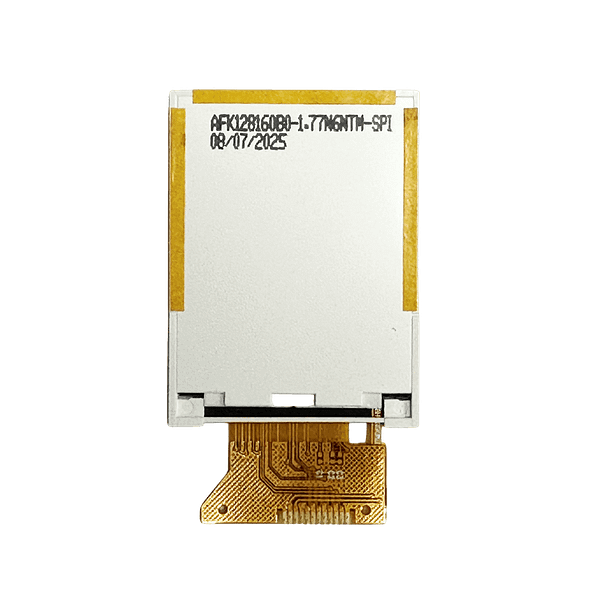

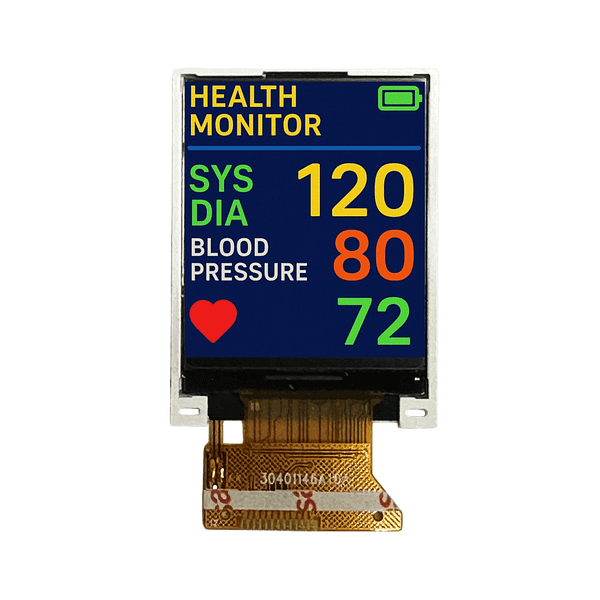

1.77″ TN display, 128×160, 320 Nits, SPI Interface
- Medium Brightness / TN display
- Diagonal Dimension: 1.77 Inch
- Resolution: 128 x 160 pixels
- Interface: SPI
- Luminance: 320 cd/m2
- Viewing Direction: 6 o'clock
- Touch Panel: None
1.77” IPS TFT display with UART interface, 240×320, 400nits
- Diagonal Dimension: 1.77 Inch
- Resolution: 240 x 320 pixels
- Luminance: 400cd/m2
- Viewing Direction: ALL
- Touch Panel: None
- Interface: UART
- Optional Accessary: Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools

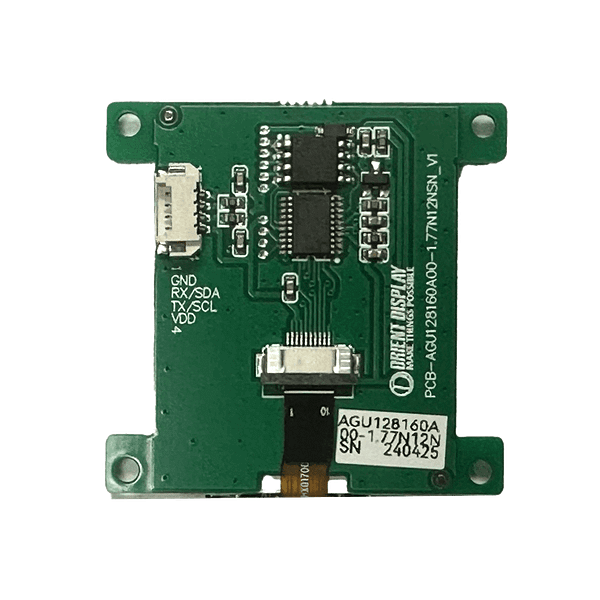

1.77″ TN TFT display with UART interface, 128×160, 280nits
- Diagonal Dimension: 1.77Inch
- Resolution: 128x 160 pixels
- Luminance: 280cd/m2
- Viewing Direction: 12 o'clock
- Touch Panel: None
- Interface: UART
- Optional Accessary: Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools
- Watch Video Tutorial on Youtube
