1.3″ IPS display, 240×240, 470 Nits, MCU/SPI/RGB Interface
- Model / Series Name: AFR240240A1-1.3INTM
- Diagonal Dimension (Inches): 1.3
- Dots WxH: 240 x 240
- Module Size WxHxD max (mm): 26.16 x 29.22 x 1.39
- Display Mode: IPS / Normal black / Transmissive
1.3″ Round IPS display, 240×240, 450 Nits, MCU/SPI/RGB Interface
- Medium Brightness / IPS
- Diagonal Dimension: 1.3 Inch Round
- Resolution: 240 x 240 pixels
- Interface: MCU/SPI/RGB
- Luminance: 450 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
1.3” Arduino OLED Displays, 128 x 64, Monochrome Blue, 4-Wire SPI Interface
- Passive Matrix OLED
- Diagonal Dimension: 1.3 Inch
- Resolution: 128 x 64 pixels
- Interface: 4-wire SPI / Compatible Arduino
- Luminance: 60 cd/m2
- Viewing Direction: All
- Touch Panel: None
1.3” Arduino OLED Displays, 128 x 64, Monochrome White, 4-Wire SPI Interface
- Passive Matrix OLED
- Diagonal Dimension: 1.3 Inch
- Resolution: 128 x 64 pixels
- Interface: 4-wire SPI / Compatible Arduino
- Luminance: 60 cd/m2
- Viewing Direction: All
- Touch Panel: None
1.3” Arduino OLED Displays, 64 x 128, Monochrome White, 4-Wire SPI Interface
- Passive Matrix OLED
- Diagonal Dimension: 1.3 Inch
- Resolution: 64 x 128 pixels
- Interface: 4-wire SPI / Compatible Arduino
- Luminance: 60 cd/m2
- Viewing Direction: All
- Touch Panel: None

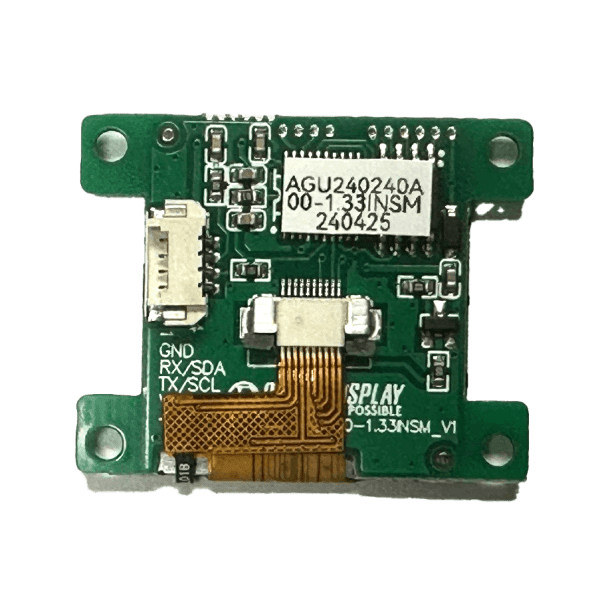

1.33″ IPS TFT display with UART interface, 240×240, 400nits
- Diagonal Dimension: 1.33 Inch
- Resolution: 240 x 240 pixels
- Luminance: 400cd/m2
- Viewing Direction: ALL
- Touch Panel: None
- Interface: UART
- Optional Accessary: Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools
- Watch Video Tutorial on Youtube
