Control Board
Control Board Features
- Products: SoM, Embedded PC, Core board
- Software: Linux, Android, Debian, yocto, Qt, Chromium/HTML5
- Chip Partners: NXP, Rockchip, TI, Samsung etc.
- Solutions: Evaluation kits, HW/SW , full custom design, display/touch,
- Advantages: Fast to market, long lifetime, cost saving, ruggedized, Local support
- Applications: Medical, automation, industrial, transportation, IoT etc.

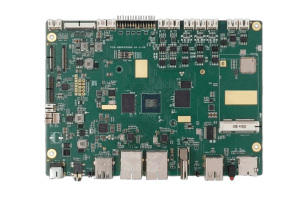

AMV-MX8MA0
Datasheet | AMV-MX8MA0 |
CPU | i.MX 8M plus |
Description | ARM Integrated Board |
System | Linux/Android |
Kernel | quad Cortex®-A53 , 1.8GHz |
Vivante GC7000UL | |
Memory | 2G LPDDR4X + 16G EMMC |
Display Port | HDMI*1; MIPI*1 ; LVDS*1 |
Network Interface | WIFI(Optional); MiniPCIE 4G(Optional); LAN*2 (1000M) |
Camera | MIPI*2 |
Communication Interface | USB2.0*2; TF; SIM; RS232*2; RS485*3; CAN*2; UART*2 |
Audio Interface | MIC; 、SPK(4Ω/3.2W*2) |
Power Supply | 8-36V DC |
System Upgrade | Support local USB upgrade |
OSD Language | Multilingualism |
Power Consumption | TBD |
Dimensions | 120.32*167.49*1.60mm |
Weight | N/A |
Operating Temp | (-10~60℃) |
Storage Temp | (-20~70℃) |

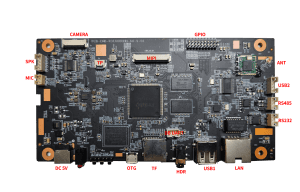

AMV-3126A0
Datasheet | AMV-3126A0 |
CPU | RK3126 |
Description | ARM Integrated Board |
System | Android |
Kernel | quad-core A7 , 1.2G |
ARM Mali-400MP2 GPU | |
Memory | 1G DDR3 + 8G EMMC (support TF card) |
Display Port | MIPI |
Network Interface | WIFI, BT、LAN |
Camera | MIPI |
Communication Interface | RS232*1、RS485*1、USB*2、OTG*1、LAN*1、GPIO*8 |
Audio Interface | MIC、SPK(4Ω/3.2W*2) |
Power Supply | 5V |
System Upgrade | Support local USB upgrade |
OSD Language | Multilingualism |
Power Consumption | 3.8W(TYP.) |
Dimensions | 158.00*80.00*9.90mm |
Weight | 70g (TYP.) |
Operating Temp | 0~60℃ |
Storage Temp | (-20~70℃) |

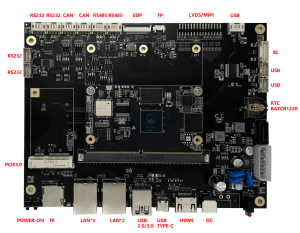

AMV-MX8MA1
Datasheet | AMV-MX8MA1 |
CPU | i.MX 8M plus |
Description | ARM Core Board + Baseboard |
System | Linux/Android |
Kernel | quad Cortex®-A53 , 1.8GHz |
Vivante GC7000UL | |
Memory | 2G LPDDR4X + 16G EMMC , support TF card |
Display Port | EDP*1; HDMI*1; LVDSI*1( MIPI compatible) |
Network Interface | WIFI(Optional); MiniPCIE 4G(Optional); LAN*2 (1000M) |
Camera | MIPI CSI |
Communication Interface | LAN*2; USB2.0/3.0*; USB TYPE-C*1; USB*3; RS485*2; CAN*2; RS232*4; PCIE3.0*1; 4G(Mini PCIe)*1; SIM card*1 |
Audio Interface | N/A |
Power Supply | 9-24V DC |
System Upgrade | Support local USB upgrade |
OSD Language | Multilingualism |
Power Consumption | TBD |
Dimensions | 170.00*120.55mm |
Weight | 155.7g |
Operating Temp | 0~60℃ |
Storage Temp | (-20~70℃) |

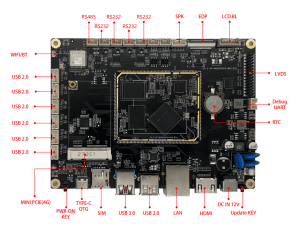

AMV-3568A0
Datasheet | AMV-3568A0 |
CPU | RK3566 |
Description | ARM Core Board + Baseboard |
System | Linux/Android |
Kernel | quad-core ARM Cortex-A55, 1.8GHz |
Arm Mali-G52 GPU is embedded with High-performance 2D acceleration hardware, 4K H.265 and other decoding methods | |
Memory | 2G LPDDR4X + 16G EMMC |
Display Port | HDMI*1; LVDS*1; EDP*1 |
Network Interface | 4G , WIFI; BT*1; LAN*1 |
Camera | / |
Communication Interface | USB3.0 TYPE-A*1; USB2.0 TYPE-A*1; DB UART*1; SPK*1; RS232*4; RS485*1; USB2.0**6; MINI PCIE(4G)*1; TF card*1 |
Audio Interface | N/A |
Power Supply | Typ. 12V |
System Upgrade | OTG |
OSD Language | Multilingualism |
Power Consumption | 2.5W(Static desktop with default brightness) |
Dimensions | 107*146 mm |
Weight | 103g |
Operating Temp | 0~60℃ |
Storage Temp | (-20~70℃) |

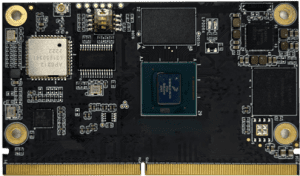

ACV-MX8MA0
Datasheet | ACV-MX8MA0 |
CPU | i.MX 8M plus |
Description | ARM Core Board |
System | Linux/Android |
Kernel | quad Cortex®-A53 , 1.8GHz |
Vivante GC7000UL | |
Memory | 2G LPDDR4X + 16G EMMC |
Display Port | HDMI *1、LVDS *2 |
Network Interface | WIFI(Optional); MiniPCIE 4G(Optional); LAN*2 (1000M) |
Camera | MIPI CSI *2 |
Communication Interface | ETH*2, SDIO TF*1, CAN*2, UART*6, I2C*3, SPI*2, USB 2.0 *3, USB 3.0*1,, PCIE 2.0*1,,I2S*1.MIPI-CSI*2, LVDS *1,HDMI*1 |
Audio Interface | I2S |
Power Supply | 5V-5.5V DC |
System Upgrade | N/A |
OSD Language | Multilingualism |
Power Consumption | 4W |
Dimensions | 82*50MM |
Weight | N/A |
Operating Temp | 0~60℃ |
Storage Temp | (-20~70℃) |

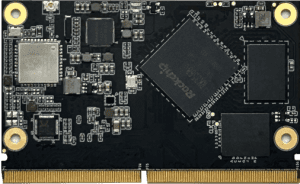

ACV-3568JA1
Datasheet | ACV-3568JA1 |
CPU | RK3568J(Wide Temperature) |
Description | ARM Core Board |
System | Linux/Android |
Kernel | quad-core ARM Cortex-A55, 1.8GHz |
Arm Mali-G52 GPU is embedded with High-performance 2D acceleration hardware, 4K H.265 and other decoding methods | |
Memory | 2G LPDDR4X + 16G EMMC |
Display Port | HDMI *1、LVDS *1、MIPI *1、eDP *1 |
Network Interface | WIFI/BT *1、Lan *2 |
Camera | / |
Communication Interface | ETH*2, SDIO TF*1, CAN*2, UART*3, I2C*3, SPI*2, USB 2.0 *2, USB 3.0*1, USB OTG*1, , PCIE 2.0*2, MIPI-DSI*1, MIPI-DSI OR LVDS*1, MIPI-CSI*1,HDMI*1, EDP*1,SATA*1,I2S*1. |
Audio Interface | MIC、 SPK |
Power Supply | 5V-5.5V DC |
System Upgrade | N/A |
OSD Language | Multilingualism |
Power Consumption | 4W |
Dimensions | 82*50MM |
Weight | N/A |
Operating Temp | (-40~70℃) |
Storage Temp | (-40~85℃) |
We provide one-stop customization services
Our Hardware team make prototypes in the shortest time according to your design ideas and requirements. We specialize in the design of cost-effective embedded ARM hardware solutions to meet your requirement for high reliability in a short development cycle.
-
-
-
-
-
-
-
– Schematic Design
-
-
– PCB Layout
-
-
-
– Industry Product Customization
-
-
-
Our Software team will help you customize all the functions of the cutting driver layer. As a complete solution provider for Linux, Android and WinCE in embedded systems, we can solve the end-to-end system-related problems of your products.
-
-
-
-
-
-
-
– System migration, optimization and tailoring
-
-
– Drive development
-
-
-
– Kernel Tailoring
-
-
– APP development (application, Linux QT, Linux C/++)
-
-
Our FAE team will provide you with a full range of technologies for your products or semi-finished products.
-
-
-
-
-
-
-
– We provide consultation on software & hardware resources of our products;
-
-
– We solve problems encountered during the use of software & hardware manuals of our products;
-
-
-
– OEM and ODM after-sales technical support;
-
-
– The data of user who purchased our products is lost and re-acquire after update;
– Failure judgment and after-sales maintenance service.
-
Our Supply Chain team will ensure excellent quality of project materials and reduce your product costs.
– We solve problems encountered during the use of software & hardware manuals of our products;
-
-
-
-
-
-
-
– Orient Display products are backed by our Lowest Price Guarantee.
-
-
-
-
-
-
