There are many types of touch panel technologies available in the market, the popular types are resistive touch panel (RTP), surface capacitive touch panel, projected capacitive touch panel (PCAP or CTP), surface acoustic wave (SAW) touch panel, Infrared (IR) touch panel.  The reason each type of touchscreen responds so differently is the underlying technology. In this article, we are going to discuss the two most widely used types, and compare resistive vs capacitive touch screen

Capacitive touch screen

Projected Capacitive Touch Panel (PCAP) was actually invented 10 years earlier than the first resistive touchscreen.  But it was no popular until Apple first used it in iPhone in 2007. After that, PCAP dominates the touch market, such as mobile phones, IT, automotive, home appliances, industrial, IoT, military, aviation, ATMs, kiosks, Android cell phones etc.

Projected capacitive touchscreen contains X and Y electrodes with insulation layer between them.  The transparent electrodes are normally made into diamond pattern with ITO and with metal bridge.

resistive vs capacitive touch screens

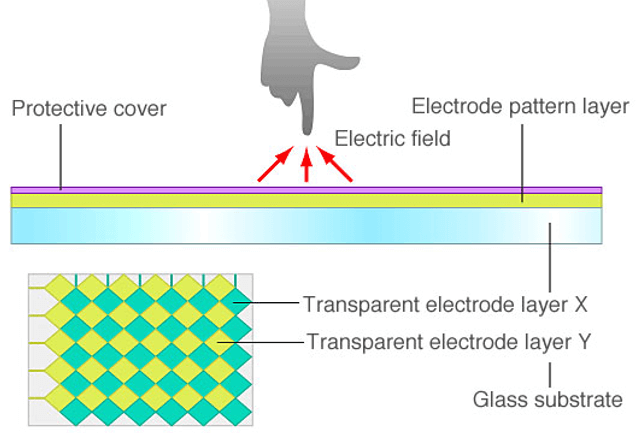

Fig. 1. P-CAP X and Y electrode structure

tft resistive touchscreen vs capative

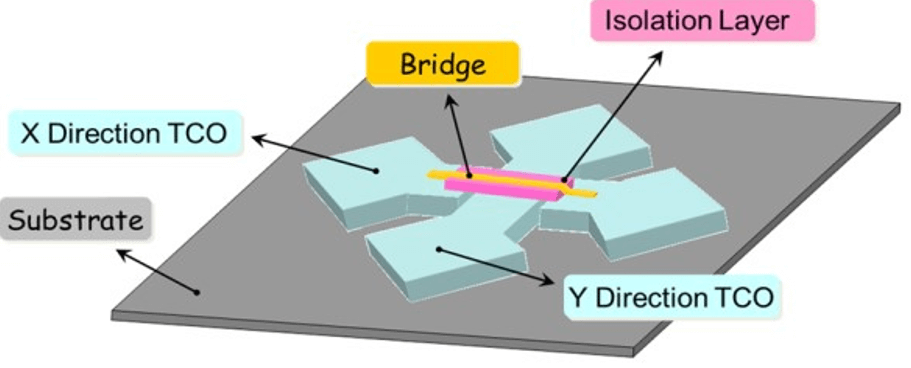

Fig. 2. Metal Bridge in P-CAP

Human body is conductive because it contains water. Projected capacitive technology makes use of conductivity of human body. When a bare finger touches the sensor with the pattern of X and Y electrodes, a capacitance coupling happens between the human finger and the electrodes which makes change of the electrostatic capacitance between the X and Y electrodes.  The touchscreen controller detects the electrostatic field change and the location.

Fig. 3. Projected Capacitive Touch Sensor



Capacitive Touchscreen Advantages

In There are many advantages for P-CAP:

  • Projected capacitive supports multiple touches (Multi-touch), so it supports a lot of gestures: Zoom in and out (pinch/spread), scroll, swipe, drag, slide, hold/press, rotate, tap etc.
  • Excellent image clarity because of high transmission.
  • Excellent sensitivity.
  • More resistance to the scratches because the surface can be made by tampered glass, such as gorilla glass or dragontrail glass which can have the surface hardness of 9H. Only diamond can make a scratch.
  • Resistance to contaminants and liquid. It is easier to get clean of dust, grease, moisture etc.
  • With the new development, projected capacitive touch panels can support gloved hand touch with different glove materials and touch with water or even with salt water.

Resistive Touchscreen: Introduction

Before 2007, resistive technology was the most popular touch panel market.  From its name, we know that the technology relies on resistance. A resistive touch screen is made of a glass substrate as the bottom layer and a film substrate (normally, clear poly-carbonate or PET) as the top layer, each coated with a transparent conductive layer (ITO: Indium Tin Oxide), separated by spacer dots to make a small air gap. The two conducting layers of material (ITO) face each other. When a user touches the part of the screen with finger or a stylus, the conductive ITO thin layers contacted. It changes the resistance. The RTP controller detects the change and calculate the touch position. The point of contact is detected by this change in voltage.

resistive vs capacitive touch resistance technology

Fig. 4. Resistive Touchscreen Technology (RTP)



Resistive Touchscreens Advantages

With the fast development of projected capacitive, resistive touchscreen devices market is shrinking rapidly but it is still widely used in some industrial applications because of the following advantages.

  • Low cost and simple manufacturing process.
  • Low power consumption and easy drive.
  • Easily be activated with any touch material as long as the pressure is applied (finger, stylus, glove, pen etc.) (not keys to cause scratches on surface).
  • Robust during harsh climate and rugged environment and no false touch.



Resistive vs capacitive touch Screens

The following table shows the comparison of resistive and capacitive touch screens. It is up to your application to select the types of technology to use.

Resistive Touch Sensor Capacitive Touch Sensor
Cost Low Relatively high, can be low for especial design
Multi-touch No Yes
Touch Gestures Difficult Yes
Touch Durability 3H, easy scratch Can be as high as 9H, hard to scratch
Power Consumption Lower Higher
Touch Sensitivity Low High (Adjustable)
Touch Resolution High Relatively low
Image Clarity Poor Good
Touch Material Any type Fingers. Can be designed to use other materials like glove, stylus, pencil etc.
Touch with water, oil No design change Need special design
Surface Decoration Difficult Easy
Different Shape Difficult Easy
Overlay Can be done No
3D surface Difficult Achievable
Size Small to medium size Small to very big size
Under Rugged Environment Easy Difficult
False Touch No Need careful calibration
functionality Sensitive to EMI/RFI Low High, shield has to be designed



For more information about touch panel, please visit other part of knowledge on our website.
